Some picture of Hadware and Electronic Part that I buy

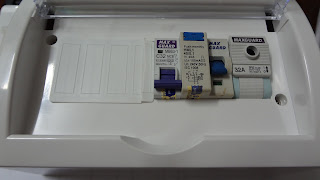

Hardware picture.

The part include is :

       a) Consumer Box 8 way

       b) Main Switch 32A

       c) RCCB 40A

       d) MCB 32A

Electronic Picture.

The component of power supply and AD7755 circuit.

The combination PCB circuit power supply and energy ic AD7755

This circuit is the combination circuit power supply and AD7755 energy ic. This circuit will giving the output at pin CF which is 3200impulse/kWh based on data sheet.

Design PCB circuit power supply using Diptrace

Below is the circuit of power supply that I design using diptrace software. This power supply circuit is to covert from transformers secondary output which is 9V/12V AC to 5V DC. This 5V DC will supply to the Microcontroller.

Change current transformers to Energy IC AD7755

This application describes a low-cost, high-accuracy watt-hour meter based on the AD7755. The meter described is intended for use in single phase, twowire distribution systems. However the design can easily be adapted to suit specific regional requirements, for example in the Malaysia power is usually distributed to residential customers as single-phase, three-wire. The AD7755 is a low-cost, single-chip solution for electrical energy measurement. The AD7755 is comprised of two ADCs, reference circuit, and all the signal processing necessary for the calculation of real (active) power. The AD7755 also includes direct drive capability for electromechanical counters (i.e., the energy register), and has a high-frequency pulse output for calibration (CF). The AD7755 provides direct drive capability for this type of counter. The AD7755 also
provides a high-frequency output at the CF pin for the meter constant (3200 impulse/kWh).

The test circuit from datasheet AD7755

The picture of AD7755 that I ordered
